Bobcat T770 Rubber Tracks – Size 450x86x55
$1,280.00
✔ In Stock
-
Track Size: 450x86x55 (Guaranteed OEM fitment)
-
Build: Continuous internal steel cables prevent stretching and tearing under heavy loads
-
Shipping: Fast 1-3 business day delivery from 19 regional US hubs
- Save up to $100 or more for orders of two or more tracks!
The prices shown are the total. These Prices reflect as if the tracks are being shipped to a Commercial Address. Prices and Freight May Vary Due to Residential Delivery, Liftgate Services, and Location.
Quote Form - Get Your Special Price Now
Please fill out all the options if no prices are shown. We will reach back to you shortly after submitting the form.
"*" indicates required fields
Description
Heavy-duty aftermarket Bobcat T770 compact track loader tracks are engineered specifically to handle the structural load of this 10,515 lb. machine. Built with continuous, high-tensile internal steel cables and drop-forged iron links encased in a natural rubber compound, this track is designed to provide an exact OEM fit that prevents rubber stretching and drive-lug tearing when operating under the loader’s full 3,475 lb. rated capacity, protecting your undercarriage while delivering maximum ground traction on demanding jobsites.
Learn about our premium manufacturing standards on our Skid Steer Rubber Track Manufacturing & Quality Guide page.
Bobcat T770 Track Specifications
OEM factory-standard dimensions and specifications for Bobcat T770 replacement tracks. Use the verified data below to confirm the precise width, link count, and track weight required for your standard 450x86x55 track assembly.
Full Track Size | 450x86x55 |
Track Width | 450mm / 17.72 inches |
Pitch Length x Total Links | 86mm x 55 links |
Track Weight | 540 LBs |
Guide Type | Steel Lug Teeth |
Our aftermarket rubber tracks are manufactured to directly replace Bobcat OEM Part Reference Numbers: 7374158, 7316763, 7305724EF, 7320105, 7327933, and 6678749.

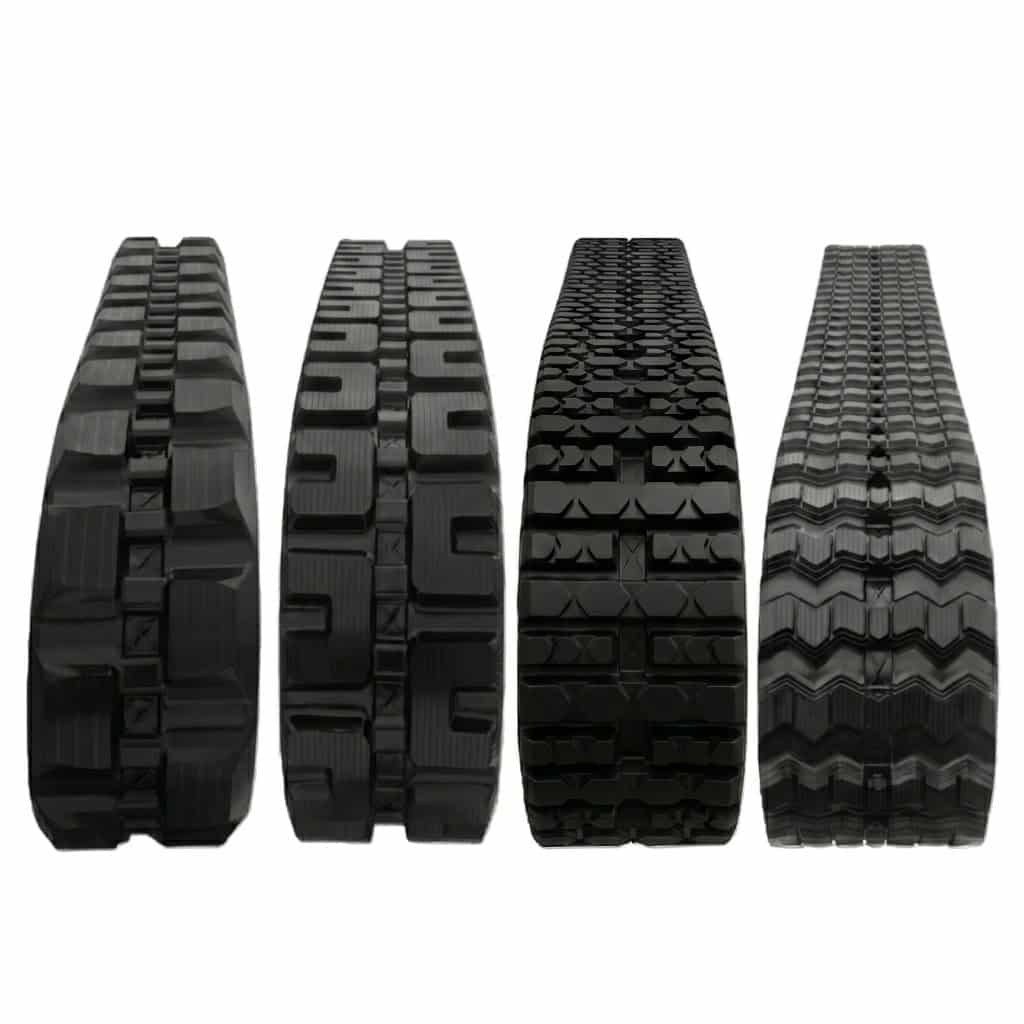

Bobcat T770 Skid Steer Tracks – Tread Options
Selecting the correct tread pattern configuration for your Bobcat T770 rubber tracks depends entirely on your specific jobsite environment. Because this modern CTL model carries a substantial 9,929 lb. static tipping load, the undercarriage experiences intensive localized stress during high-capacity material handling and heavy grading. Use the terrain suitability table below to find the pattern that best meets your job’s requirements.
Tread Pattern | Best Jobsite Application | Hard Surface | Mud/Clay | Snow/Ice | Demolition | Forestry | Turf/ Soft Soil |

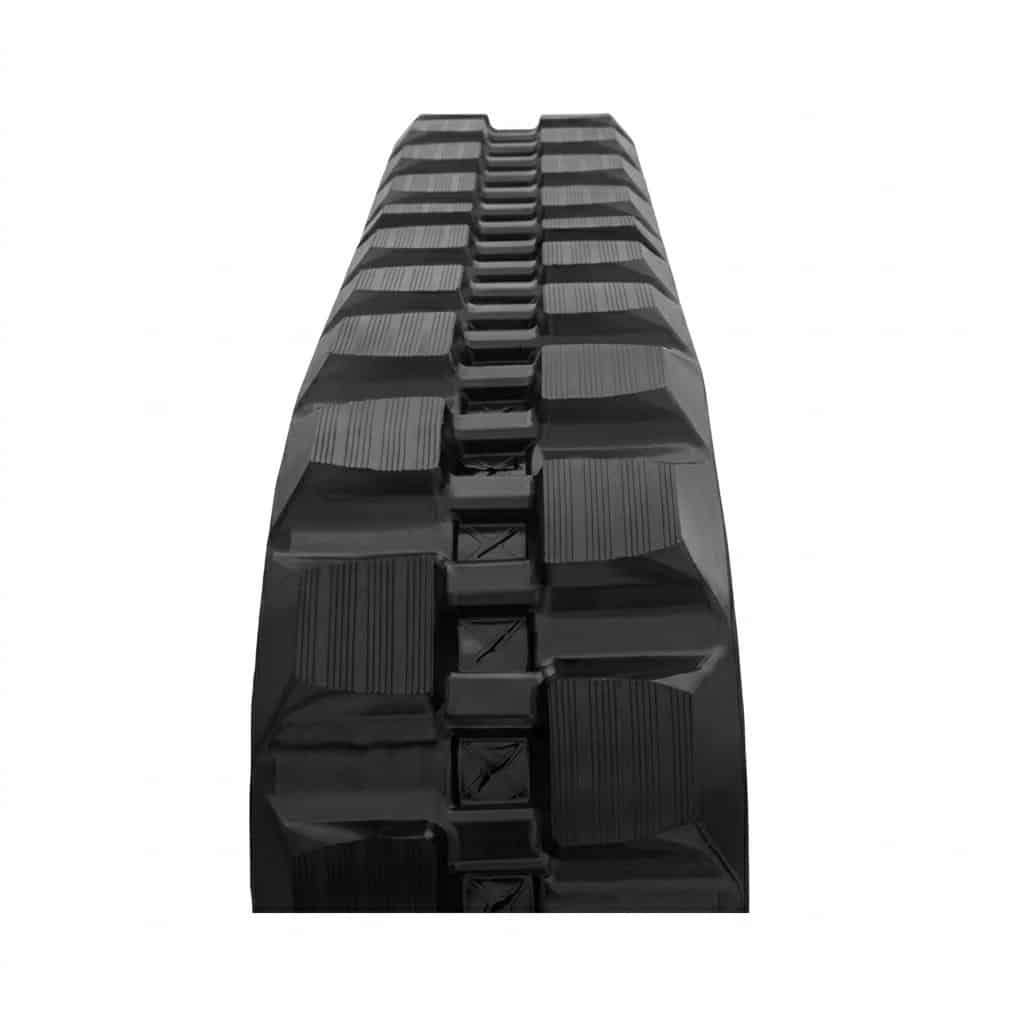

Block | Asphalt, Concrete, Pavers | ||||||

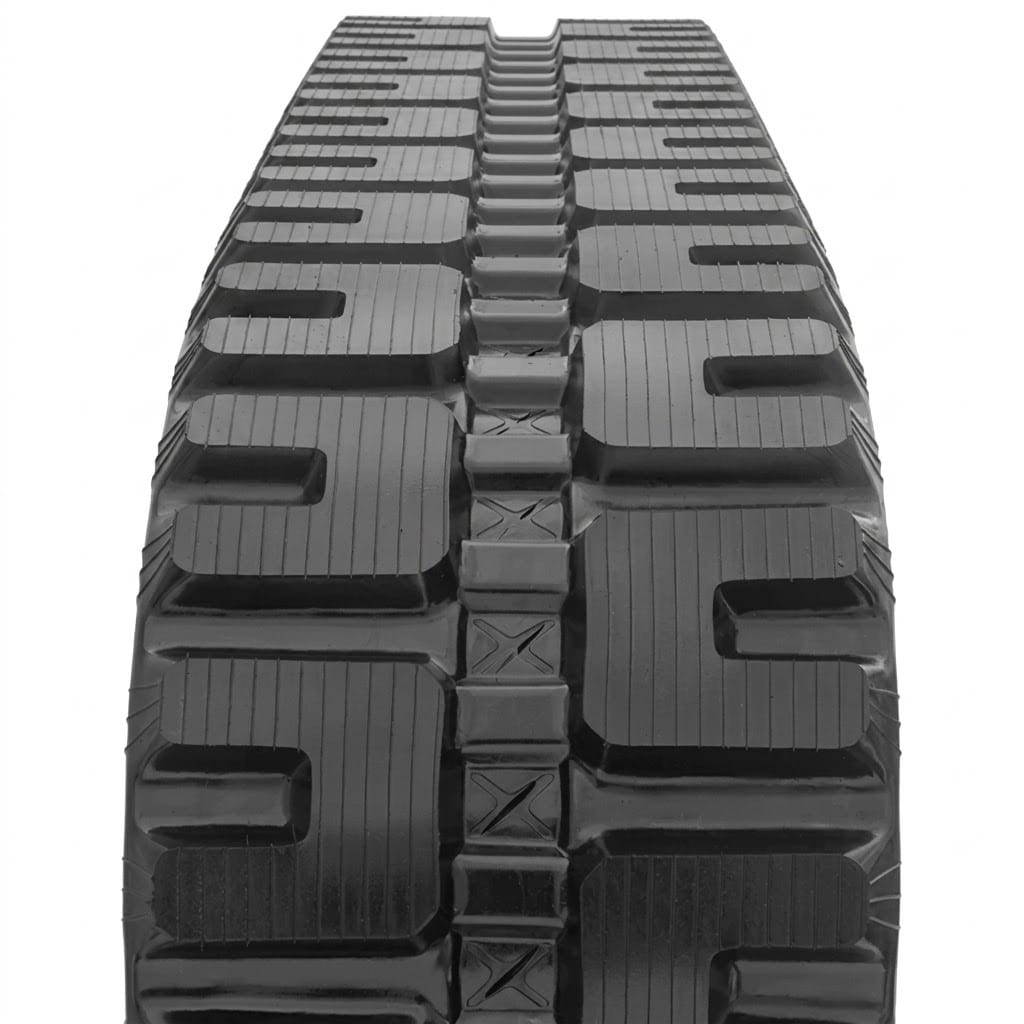

C Block | All-around use, General Offroad use | ||||||

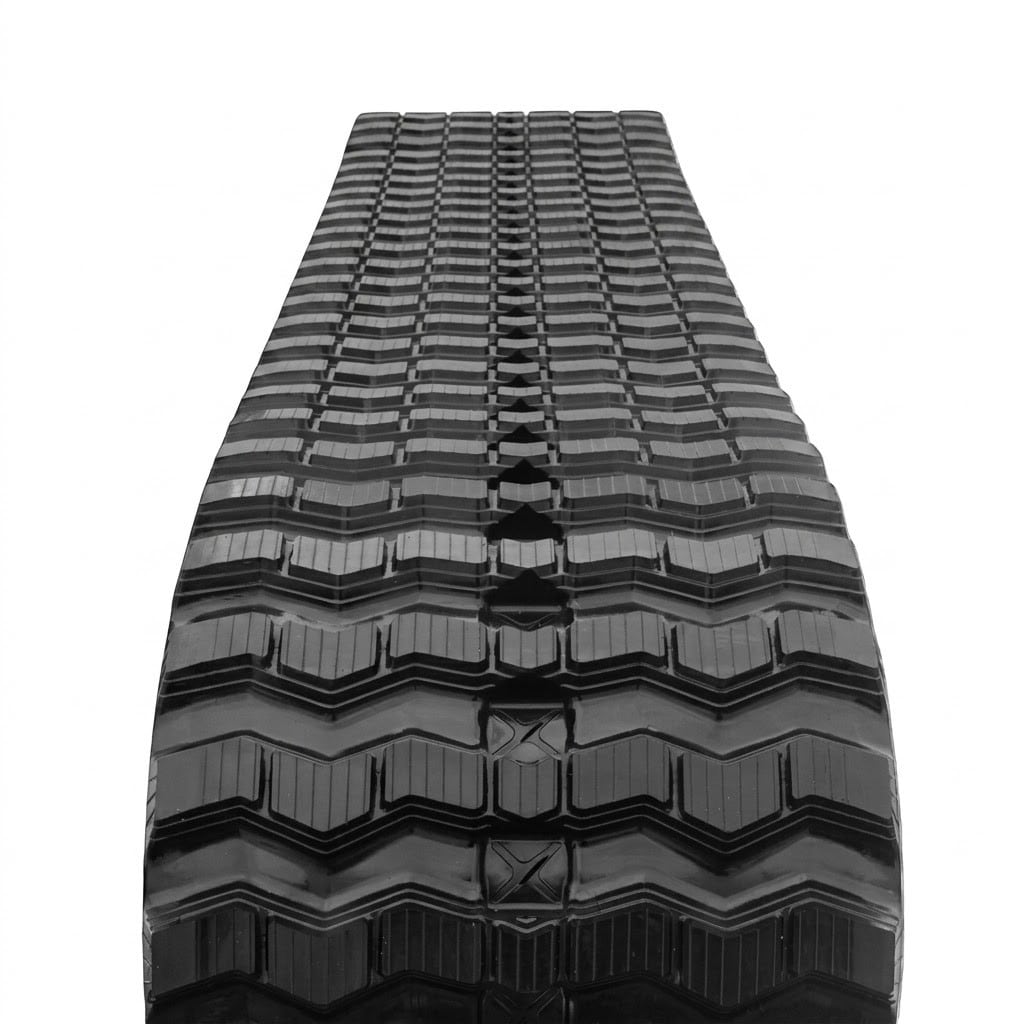

Zig Zag Bar | Snow, Ice, Mud, Steep Grades | ||||||

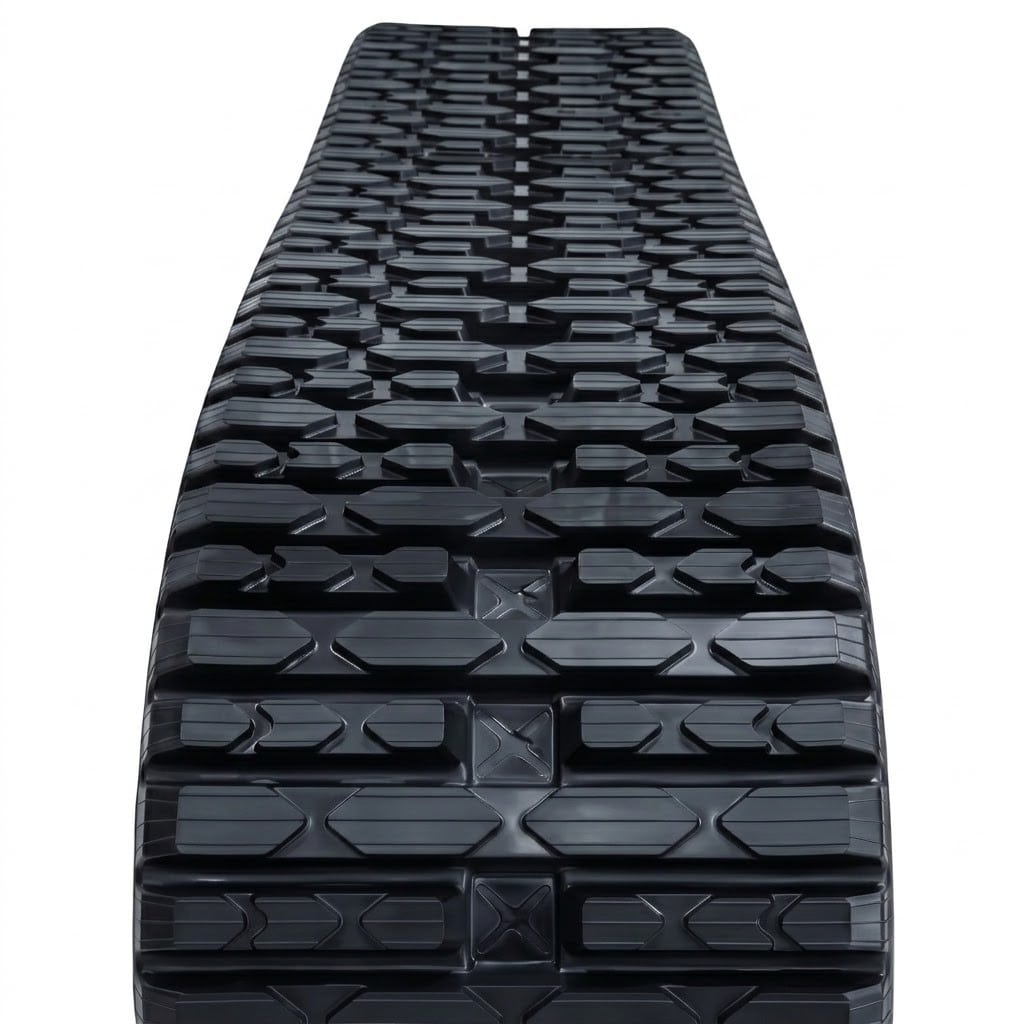

Multi-Bar | Forestry, Loose soil, Turf, |
Undercarriage Inspection & Parts
Installing brand-new rubber onto worn sprockets or out-of-spec rollers is the leading cause of premature track failure. When your drive components are worn, they quickly degrade the internal rubber guides of your fresh tracks. Before you install a new set of tracks on your machine, inspect your wear components to safeguard your investment. Our exact-fit parts for Bobcat T770 loaders include:
- View Drive Sprockets for Bobcat T770 – New sprockets ensure perfect tooth engagement and prevent hooked teeth from chewing up your new rubber drive lugs.
- View Bottom Rollers for Bobcat T770 – Heavy-duty rollers distribute the machine’s 10,515 lb. base operating weight evenly across the track frame to prevent rail binding.
- View Front & Rear Idlers for Bobcat T770 – Engineered to maintain straight track alignment and prevent costly derailments during high-climb or sloped site prep work.
Shipping & Transit Information
OnTracParts ships directly from 19 regional distribution hubs located throughout the United States. By utilizing our warehouse routing, we ensure your replacement rubber tracks for the Bobcat T770 ship from the facility closest to you, and most rubber track freight shipments arrive within 1 to 3 business days. Local commercial dock deliveries, freight company terminal drops, or residential liftgate logistics choices remain fully configurable within your checkout window.
Have a different model? Here is a list of Other Bobcat Rubber Tracks Replacements we stock.
Additional information
| Weight | 550 lbs |
|---|---|
| Machine Type | Compact Track Loader / Skid Steer |
| Make | Bobcat |
| Model | T770 |
| Brand | OntracParts |
| Track Full Size | 450x86x55 |
| Width | 450mm / 17.72 inch |
| Pitch | 86 mm |
| Link Count | 55 links |
| Track Tread Patterns | Block Tread, C-Block Tread, Multi Bar Tread, ZigZag Bar Tread |
| Product Type | Rubber Track |
Rubber Track Maintenance
- Maintain Correct Tension: Never “eyeball” your track sag. Over-tightening robs horsepower, strains drive bearings, and can snap internal steel cables. Under-tightening causes detracking, which instantly destroys the track’s internal drive lugs. Check your operator’s manual for exact sag tolerances.
- Daily End-of-Shift Cleanouts: Use a spade or pressure washer to clear mud, clay, and gravel from the undercarriage frames daily. Packed debris hardens overnight, acting like heavy-grit sandpaper that grinds down rubberized surfaces and seizes bottom rollers.
- Inspect Sprockets & Rollers: Never install a brand-new rubber track on a worn-out undercarriage. Sharp or “shark-toothed” sprockets will actively gouge and tear out your new track’s drive lugs. Ensure bottom rollers spin freely and check idlers for rough rims or bad bearings.
- Practice Smart Operating Habits: Avoid high-speed, 90-degree pivot turns on concrete or asphalt to prevent severe tread scalloping (especially if not using a block tread). Always approach curbs straight-on (perpendicularly) and travel straight up or down grades—never sideways—to prevent edge slicing and derailment.
